Minray professional car window led display manufacturers
- The LED display for vehicle windows is the first-generation LED display for vehicle windows designed by the R&D team of Minray. It has obtained the IATF 16949 automotive quality management system certification. In both the original equipment manufacturer (OEM) and aftermarket, it has established strategic cooperative partnerships with world-renowned enterprises such as Audi and Volkswagen.
- From the perspective of users, we strive to create a product that is easy to install and operate and features stable quality. We have addressed the pain points in the industry that have long existed, such as low brightness, low refresh rate, narrow viewing angle, blurry viewing experience, and reflected light. Over the years, we have successfully launched this product and received positive feedback from our customers. The product has stable quality and meets the customers’ expectations.

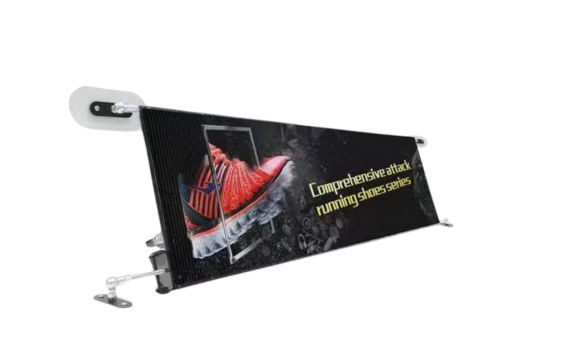

Minray car window led display product details
The Minray LED display for automobile windows is equipped with a dedicated vehicle protection power supply, a highly clustered advertising control system APP or PC, high-quality LED beads, a high-refresh-rate driving integrated circuit (IC), and a high-precision 4-layer copper-clad printed circuit board (PCB). The structure is made of drawn aluminum, which is extremely light, thin, and stable. In addition to saving electricity, we also apply red adhesive to the structural fasteners to ensure that your car will not be affected by vibrations during driving, making it safe and reliable.

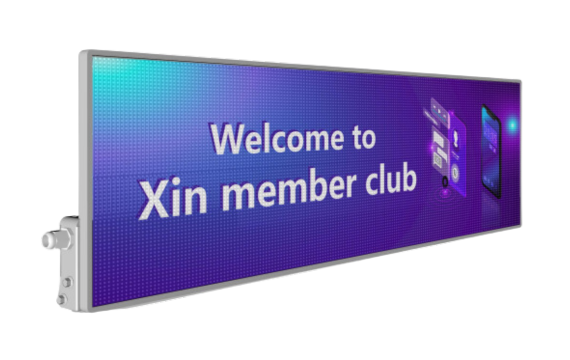

In order to make your car window led screen look more coordinated, we used a very narrow border design, in addition to reducing fuel consumption, electricity, but also to better ensure the visual viewing effect
Mindray P2.8 window LED display has the characteristics of high brightness, high resolution, ultra-high gray level, ultra-thin design and so on. It uses an efficient dual IC driver, and the LED uses edge blackening technology, resulting in a higher screen contrast. This allows images or videos to appear realistically and clearly even in bright sunlight, making them even more striking.
Minray P3.4 car window LED display not only features high brightness and refresh rate but also boasts an ultra-high transparency of over 80%, allowing for vivid display without impairing the driver’s view through the rear window.
Minray a new generation of product design

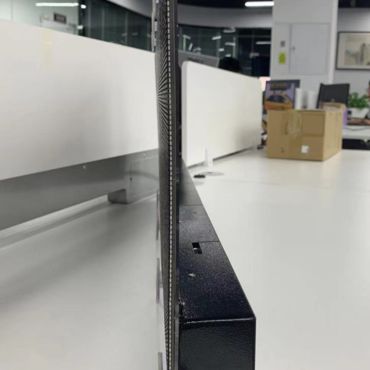

- Customized CNC control cabinets with a lightweight and shock-proof design ensure your safety while driving.
- The overall waterproof rubber pad seal provides extremely high water and moisture resistance.
- The surface of the structure has undergone galvanization and anti-oxidation treatment, making it rust-proof and corrosion-resistant.
- The specially designed reinforced shock-proof and heat-dissipating structure is suitable for complex road conditions.
- The patented streamlined design gives it a smooth appearance.
Excellent Image Quality
- By using high-brightness outdoor LED lamp beads, our product is able to achieve a remarkable brightness of up to 5000 cd/m² under sunlight, and it has an impressive contrast ratio of 6000:1.
- We are also equipped with brightness adjustment function, you can adjust the brightness according to the different time of driving, different weather, in addition to achieve the best display effect, but also save power.
High light transmittance design

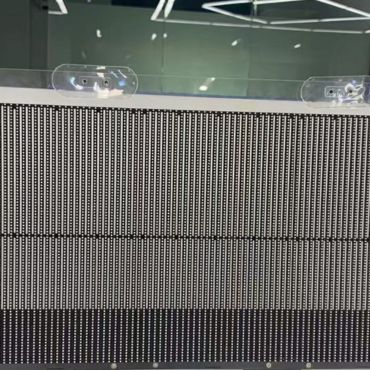

The LED car window transparent screen is installed in the rear window position, minray adopts transparent structural design to ensure that you do not block the rearview mirror under normal driving, to ensure the safety of driving.
Better power savings
Minray LED car rear window transparent display
1. Use a customized LED car power supply that effectively converts the voltage on the vehicle, thus better protecting the car battery.
2. Adopt a DC 4.2V energy-saving circuit design, which reduces power consumption without affec ting the overall display effect.
3. Employ energy-saving lamp beads to control the maximum power consumption of LED display within 200W and the average power consumption within approximately 50W based on an overall energy-saving solution.
Intelligent Publishing Platform
- The car window screen is integrated with a 4G module, which can achieve one-to-many control of the advertising release platform, enabling the advertisements to be always updated synchronously and making the operation convenient.
- Our LED display for vehicle windows can achieve the timed advertising function by installing a GPS. It can provide the advertisements and the quantity of advertisements in a designated area at a fixed time, serving you more intelligently.
- We also have the precise advertising function, which can use the system to send advertisements to your single taxi from a long distance.
- The Minray LED display for vehicle windows can also send advertising information in groups or on a large scale quickly.
Application scenarios And Specifications

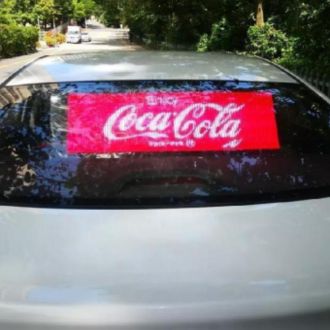

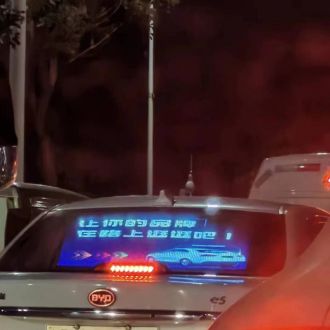

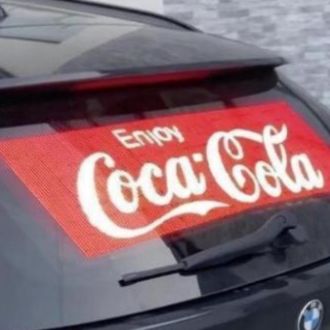

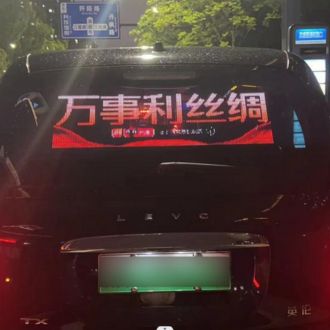

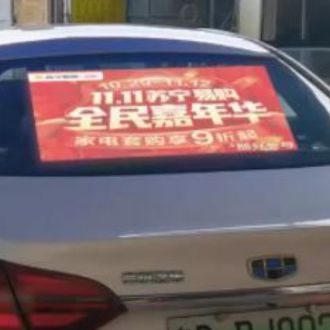

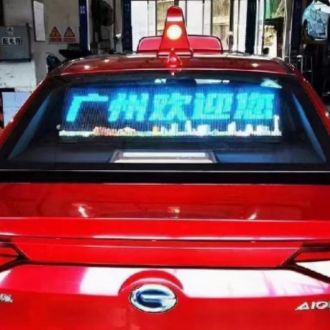

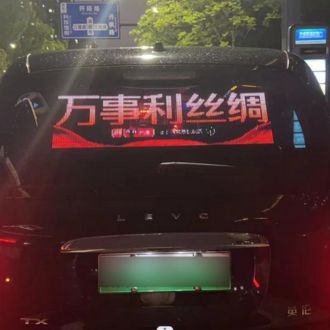

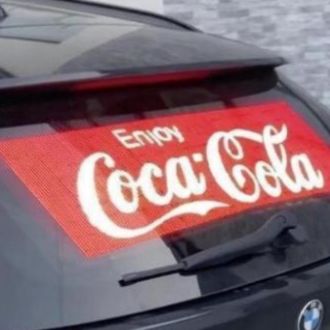

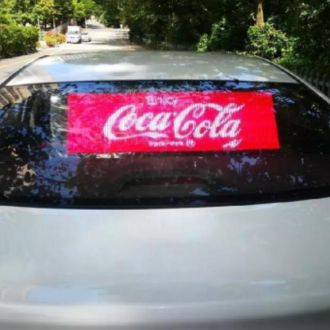

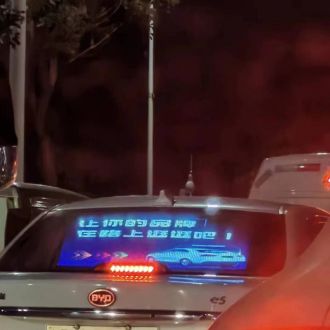

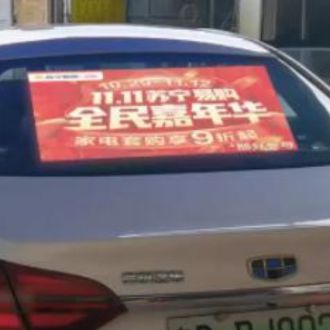

- Application scenario
- Specification
| TW2.6 | TW2.7 | TW2.9 | TW3.4 | |
| Lamp size | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Pixel pitch(MM) | 2.6mm | 2.7mm | 2.9mm | 3.4mm |
| Module size(mm) | 756x250mm | 780x250mm | 1000x320mm | 250x744mm |
| Module resolution | 144*96dot | 140*90dot | 176*108dot | 96*72dot |
| Cabinet size(mm) | 820x267x47 | 792x267x47mm | 1012x337x47mm | 766x265x47mm |
| Cabinet weight | 2.8kg | 3.8kg | 6.5kg | 4.2kg |
| IP rating | Indoor | Indoor | Indoor | Indoor |
| Brightness intensity | ＞4500CD/㎡ | ＞5000CD/㎡ | ＞5000CD/㎡ | ＞5000CD/㎡ |
| Ave power | 43W/㎡ | 45W/㎡ | 57W/㎡ | 40W/㎡ |
| Refresh frequency | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
