Minray Curved LED Display
With more and more applications of LED display, in the field of conference singing, advertising, landscape display, exhibition, etc., LED display is the best solution.
Then people’s requirements for LED display are not limited to the traditional square appearance. they want a curved surface, easy installation, and the flexibility to adapt to different shapes. Our Minray curved LED displays can meet any display requirements you have.
Whether for permanent installations or rental purposes. we are your top choice for both applications.
How to Create a Superior Curved LED Display?
A stable product is not achieved through imitation but through continuous experimentation, summarization, improvement, and refinement. We are proud to say minray curved LED displays have passed international industry standards such as CCC, FCC, RoHS, and CE. They have been successfully applied in over 100 countries worldwide and have received excellent feedback. We can help you solve various usage scenarios and provide a perfect solution, making operation easier and installation more convenient. Contact our professional team. We are your first choice.
Our displays utilize a flexible module composed of a silicone rear cover, which allows for multi-angle concave or convex bending, adapting well to various spaces.
We offer a range of pixel pitches from P0.9375 / P1.25 / P1.56 / P1.87 / P2 / P2.5 / P3 to P4, covering all display requirements and providing you with more choices.

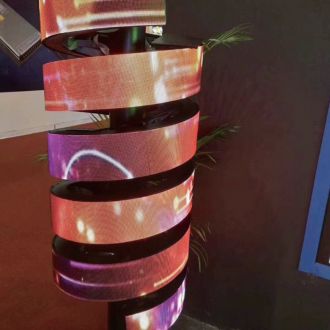

Each module weighs only 0.19kg and is 8.6mm thick. With its strong flexibility and ultra-strong magnetic attraction, the V-shaped design allows for a bending radius of up to 145° without glue detachment or warping. It is suitable for wave screens, ribbon screens, cylindrical screens, and any other shapes.

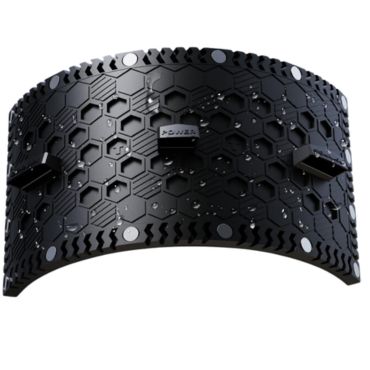

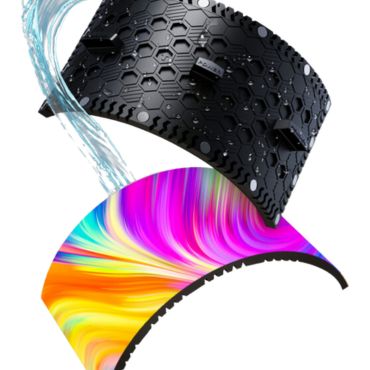

Fully outdoor-sealed silicone rear bottom cover with a bending and folding angle up to 162° concave and convex, providing a refined appearance both inside and out.
Made of sealed silicone ABS raw material, honeycomb design is more durable, fireproof, UV resistant, plasticized, fast heat dissipation, seamless installation, and comes standard with a safety cord to prevent falling when replacing or installing modules.
Our outdoor waterproof design, waterproof grade reaches IP65, power port, signal port, have done waterproof treatment, suitable for all kinds of bad weather, still ensure stable product performance.

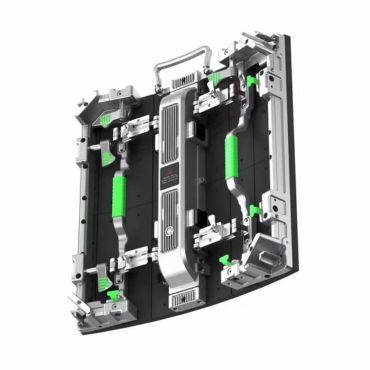

Minray rental curved LED display, is a product used in the stage mobile rentals with the lightweight of 10KG per unit and can be freely assembled into arcs or circles, making them the best choice for curved displays in rental applications. It can be bent and used by unlocking the up and down switch with simple operation and can be matched with the right angle screens, which is really mixed splicing with fast installation
The Minray MS series products for the stage are a type of display screen that can be easily bent. They adopt a modular design of 62.5mm*500mm, are made of die-cast aluminum, and enable quick and smooth installation. You can easily complete the installation alone. According to the viewing distance, we recommend you to use P2.6, P2.9 and P3.91. The maximum bending degree is ±80°.
Our modules adopt an extremely narrow design, which can maximize the bending degree of the modules. The bending is natural and smooth without any creases, making it easy to complete the special-shaped design schemes for cylindrical LED displays and curved LED displays. This will make your stage more distinctive and achieve even better effects.
Curved Led Display Feature
Our curved LED displays are integrated with an led display module hat allows convex and concave curvature up to 1,000R. This design allows truly curved screens.
Light curved led display, can be more lightweight installation, save a lot of labor costs, more efficient and fast.
Minray curved LED displays can deliver distinctive pictures with vivid colors. All images, videos, and information are displayed in a range of color details
Minray curved LED display has lighter, smaller, and compact modules. Thus, you can assure that these are easy to handle, fast, and safe to install.

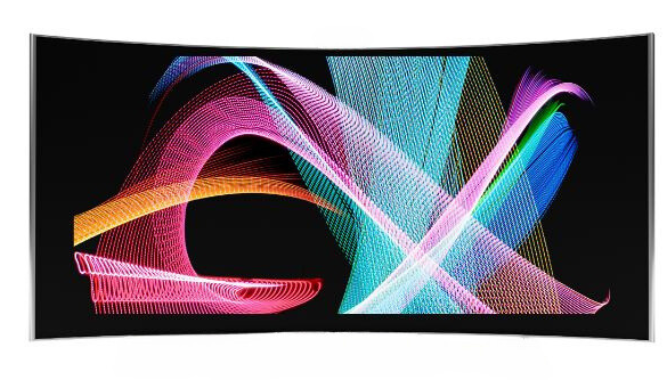

Every frame of high-definition content must be displayed clearly

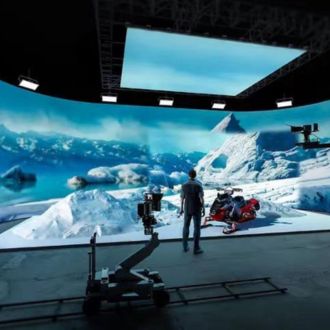

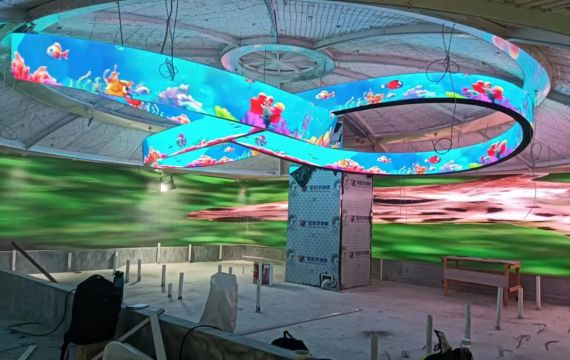

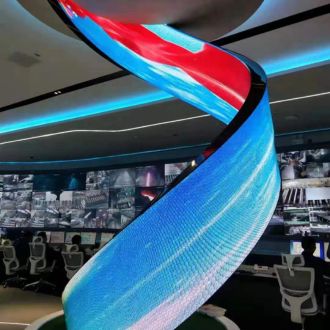

Minray flexible curved led display can be assembled into 45° concave and 90° convex shapes, offering a high contrast ratio of 8000:1 and a super-wide viewing angle of over 160°. The refresh rate can reach above 3840HZ, which can provide high-definition display from different angles, ensuring smooth and delicate display while expanding the possibilities for creative shapes like naked-eye 3D and XR, and full front maintenance, eliminating the need for rear access channels and reducing installation space requirements, making it convenient for various scenarios such as wave screens, cylindrical screens, and Mobius Ring, among others. The control systems offer a variety of options, including Nova’s real-time synchronous system, and the TB box asynchronous system for storing programs, enriching your operation, realizing simple control screen and free operation.

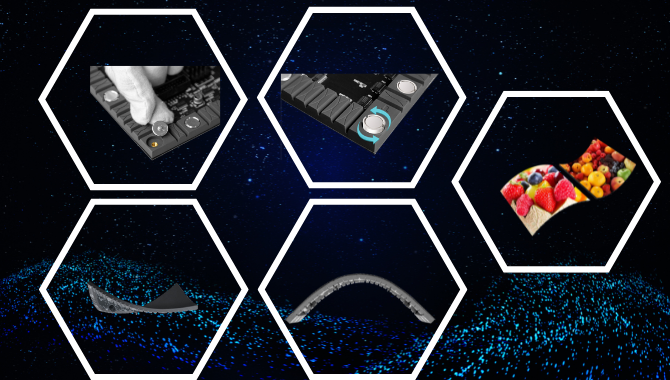

Multiple innovative design
- V-shaped design allows for flexible module splicing, easy installation and a wide range of angles.
- The flexible module composed of the silicone rear shell can realize multi-angle concave or convex bending, so that it can be well adapted to a variety of spaces.
- Unlike traditional flexible modules that easily lose adhesion or warp after high-intensity bending, our Minray curved LED display maintains extremely high flatness and strong magnetic attachment.
- Patented design with strong magnetism has adjustment function which can effectively reduce the screen splicing gap, adjust the flatness to ≤0.3mm, achieving perfect seamless splicing and a smooth joint surface that conforms to various curved surfaces.
Advantages of curved led display
Curved led screens offer many advantages in engineering installation.
The Minray bent LED display screen is 50% lighter than traditional rigid modules, reducing the load on the steel structure during installation and saving you the cost of the steel structure.
At a 90° corner, compared with rigid modules, the Minray bent LED display screen can be seamlessly connected without visible creases, maintaining the continuity and aesthetics of the image. In contrast, rigid modules will have visible creases, affecting the continuity and aesthetics of the screen. Four 320*140 modules can be assembled into a cylindrical screen with a diameter of 30 cm.
A wide variety of innovative surface designs

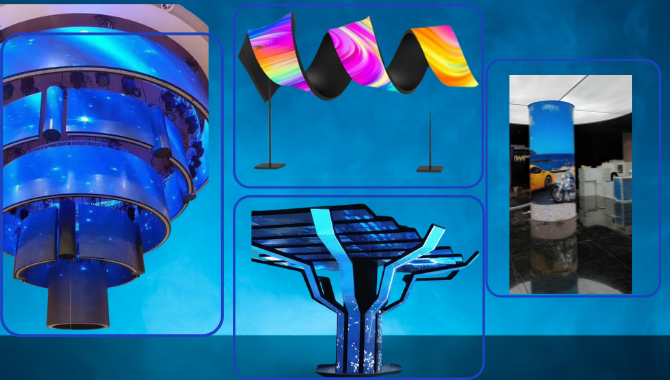

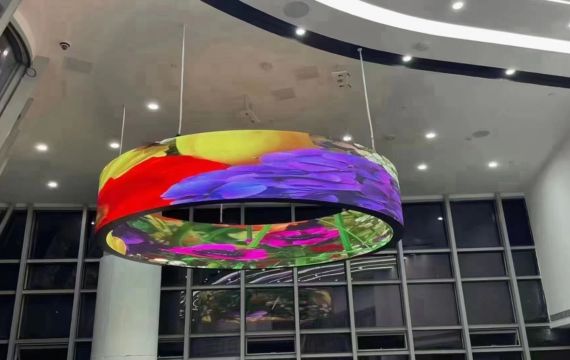

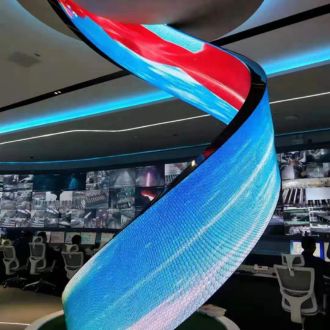

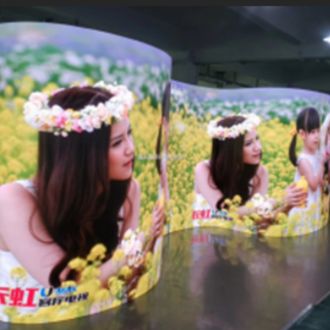

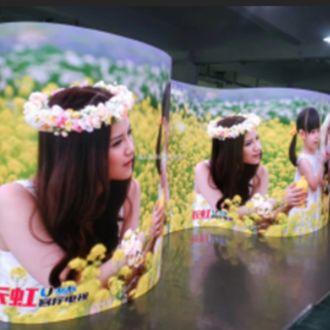

The Minray curved LED display can be combined with various complex modeling designs, making your display effect more distinctive. At the same time, it allows you to freely combine it into shapes such as cylindrical, wavy, circular, spherical, and “S” shapes, enhancing the sense of space and presenting a high-end, fashionable, and personalized appearance.
Ultra-light, Ultra-thin, and Limitless Installation
With a single module weighing only 0.8KG and the thickness of just 0.29cm, these ultra-light and ultra-thin characteristics allow for more versatile shapes without worrying about lifting and load-bearing issues. Safe and secure, the magnetic front-maintenance installation method eliminates the need for maintenance, making the structure lighter and easier for both installation and maintenance, ensuring convenience to use.
Curved Led Display For Commercial Applications

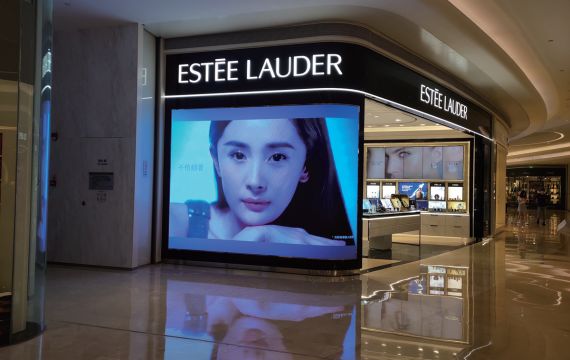

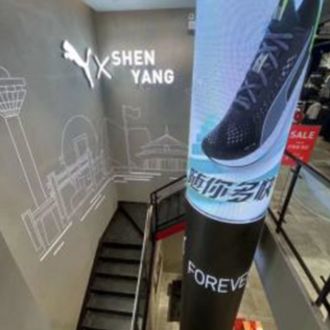

The exterior walls of the stores made of glass in order to let customers see more clearly can benefit from curved designs to increase the viewing angle and attract the attention of passersby in different directions to see our advertising, making it a good customer-attracting product, no corner, no crease and continuous images.

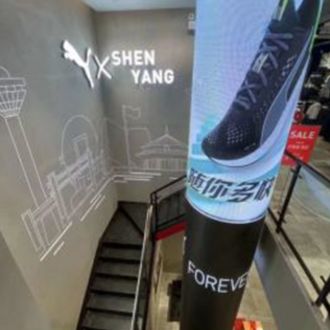

When entering a corridor with a sense of three-dimensions, the immersive experience provided by the continuously playing content can leave a lasting impression, enhancing image and encouraging visitors to stay longer.
Other Applications
Stage rental curved LED screen is a product for temporary use that can meet any shape requirements. It can be mixed and matched with our MR series for versatile combinations, quick installation, convenient maintenance and saving on labor costs.
Widely used in:
- stage rental
- conference release
- exhibition display
- car display
- stage performance
- concert studio
Outdoor curved LED displays with fixed installation offer an expansive viewing angle, capturing everything in sight.
Adaptable to Any Environment
Minray manufactures curved LED displays with a seamless design that is adaptable to any environment. Which can be installed in any location such as:
- concert studio
- Trade show

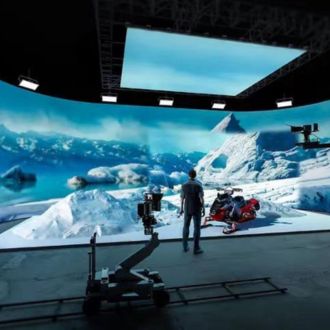

- Studio backdrops
- Signage
- Desks
Using flexible module series splicing, combined with 3D material, so that the playback form has an immersive effec。
Curved LED Displays are widely used for many applications including:
- conference room
- Advertising display
- Cinemas
- Smartwatches
- Smart homes
- Mobile phones
- Broadcasting
- TV studios, and more
We can provide customized curved LED displays according to your applications.
Application scenarios And Specifications
- Curved Led Display Applications
- Specification
| Module Size(MM) | 256mm*128mm | 320mm*160mm | ||||
| Model | ML2 | ML4 | ML1.86 | ML2.0 | ML2.5 | ML3.076 |
| Pixel Pitch | 2.0 | 4.0 | 1.86 | 2.0 | 2.5 | 3.076 |
| Module Size(mm) | 256mm*128mm | 256mm*128mm | 320mm*160mm | 320mm*160mm | 320mm*160mm | 320mm*160mm |
| Module Resolution | 128*64 | 64*32 | 172*86 | 160*80 | 128*64 | 104*52 |
| Lamp Size | SMD1515 | SMD2121 | SMD1212/1010 | SMD1515 | SMD1515 | SMD1515 |
| Brightness | ≥1000（cd/㎡） | ≥1000（cd/㎡） | ≥1000（cd/㎡） | ≥1000（cd/㎡） | ≥1000（cd/㎡） | ≥1000（cd/㎡） |
| Refresh Rate | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
| Scan Mode | 1/32S | 1/16S | 1/43S | 1/40S | 1/32S | 1/26S |
| Input Voltage | 4.2V | 4.2V | 4.2V | 4.2V | 4.2V | 4.2V |
| Max Current | 3A | 2.8A | 5A | 5A | 5A | 4.5A |
| Max Consumption | 15W | 14W | 25W | 25W | 25W | 22.5W |
| Weight | 0.235KG | 0.19KG | 0.6KG | 0.63KG | 0.54KG | 0.5KG |
| Thickness | 8.6MM | 8.6MM | 8.6MM | 8.6MM | 8.6MM | 8.6MM |
