Excellent Cabinet Structure
- Die-cast aluminum box, quick installation, seamless splicing.
- Meet any mounting size.
- Single person installation is easy to complete.
- Modules, power supply, control HUB, complete pre-maintenance.
- High cost performance.

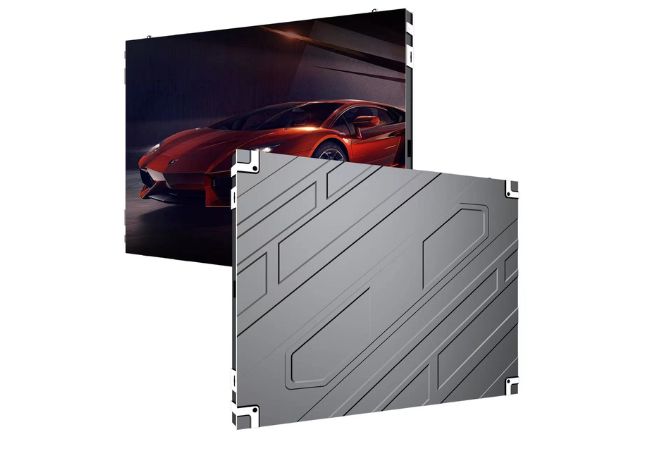

Minray Led Billboard Display
Minray 640 die-casting aluminum cabinet series, for the market is indoor indoor commercial led billboard display, mostly due to space constraints, the need for ultra-thin and ultra-lightweight installation, dot pitch P1.25/P1.53/P1.86/P2/P2.5 can be selected, you only need to understand the resolution you need the size of the viewing distance near and far, to choose a suitable cost-effective! In addition to the regular module SMD program, we also provide GOB module as your choice, if you have any questions, please contact us.
Led Billboard Display Module Series
Module size: 320*160mm
Resolution: 256*128
Meet the indoor HD led display, with a high resolution, used in close viewing, can be splicing into 4K/8K high-definition display, widely used in conference rooms, hotel lobby, advertising poster screen, command center, intelligent transportation field, can replace the projection instrument, LCD splicing screen, the effect is more outstanding
Module size: 320*160mm
Resolution: 208*104
Is a very cost-effective high-definition led display, can meet all business needs, through advertising display, conference release, stock securities, airport information board, etc., has a very wide range of display application scenarios, passed CE,ROSE,CCC, ISO9001, and other system certification, to ensure the product display quality, successful application in the global field.
Module size: 320*160mm
Resolution: 192*96

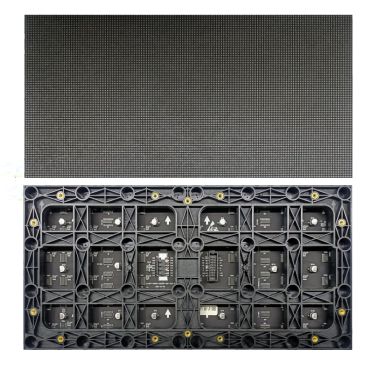

Our 1.667-pixel pitch LED displays are commonly used in airports, banks, restaurants, subways, hospitals, etc. It has the characteristics of ultra-light, ultra-thin, easy to install, easy to maintain, will give you an unexpected visual experience.
Module size: 320*160mm
Resolution: 172*86

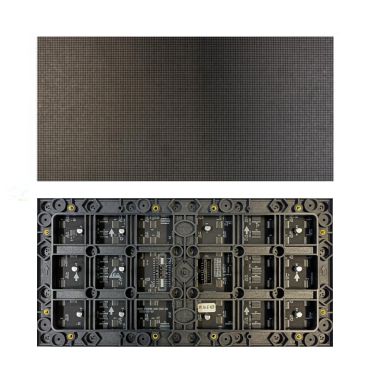

Our P1.86mm pitch led display, the usual viewing distance is about 2 meters, has a wide range of viewing angles, high contrast, high refresh rate, and can choose GOB, to achieve anti-bump, moisture-proof gas, waterproof and other characteristics, can be used in hotels, KTV, bars, and other entertainment venues, with super sound and photoelectric application scenarios. Bring super stunning visual enjoyment.

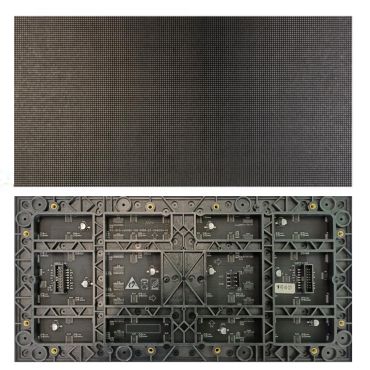

Module size: 320*160mm
Resolution: 160*80
P2 point pitch is a very wide field used in the field of commercial display, it has a small pitch high-definition display, but also has the characteristics of viewing distance, without any sense of granularity, RGB chip arrangement uniform, high refresh, high brightness, and can use a module separately embedded wall installation, advertising display in shopping malls, door display, ball games and other fields. Has a very good reputation
Module size: 320*160mm
Resolution: 128*64
P2.5mm point pitch, is currently the led display market the largest circulation of the single display product, it has a high cost performance, suitable for any display scene, as a door screen, hotel lobby, traffic information release, commercial conference and so on.
Indoor Commercial Led Billboard Display Feature
Highly integrated design
IS640 series adopts box size is 640*480*38mm, thickness is only 38mm, weight is 7.5KG, per square meter is only 22KG, module, power supply, control card full front maintenance, quick installation, perfect design, internal wiring, simple and beautiful, using 320*160mm module series, cost-effective, CNC die-cast aluminum box, high precision, good flatness, seamless splicing.
Quick installation
It takes only 5 minutes to assemble a box, install the power supply and receiving card, quickly install the module, only 6 modules in a box, and only 20 modules in a square are installed, saving time and effort, safe and fast.
Diversified installation methods
IS640 series, is the indoor fixed installation of led display, in addition to the module wall installation, but also support vertical installation, lifting, seat installation, etc., diversified installation methods, is the king of the cost performance of commercial display, widely used in commercial display, conference display, corporate publicity, hotels, airports, subway stations, shopping centers.
Super clear picture quality performance

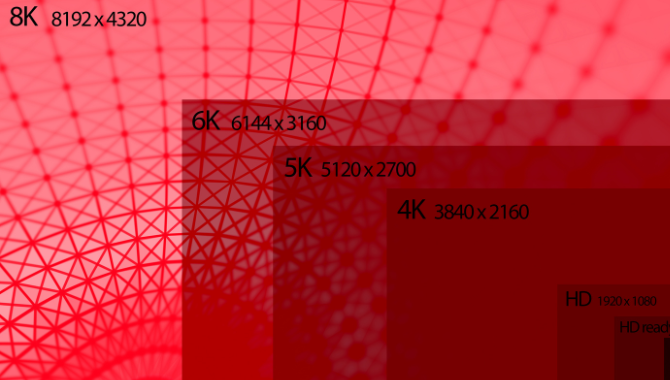

With a point pitch product below P2.5, consistent with a close viewing distance of 2 meters, we offer a high refresh rate of 3840HZ,16bit gray scale, and contrast ratio of 6000: 1, high-quality led lamp beads, such high-quality materials, bring unparalleled ultra-clear picture, dynamic fast flicker, bring visual impact, appeal, easy splicing large screen, support 2K/4K/8K high-definition display, point-to-point display, no compression, no stretch, beautiful picture, is a very good large screen.

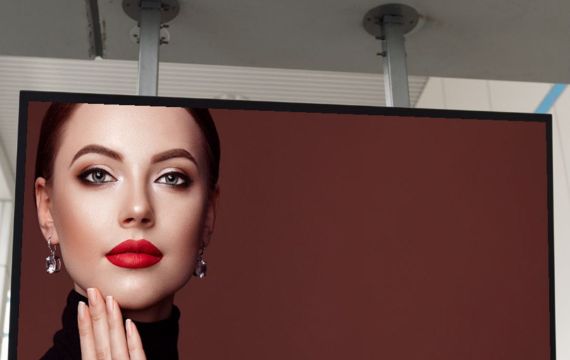

Ultra-thin wall mount
When you feel that you need to install an led display in a limited space size, will you have a lot of confusion?
- The box is too thick, and the screen surface is too convex, which affects the appearance.
- The box is too heavy, the bearing structure is high cost?
- Screen size too small, not enough clarity?
- Believe us, our led display expert team has solved, “ultra-thin”, “ultra-light”, “ultra-clear” we all give you, the amount does not increase the price, ultra-high cost performance, warranty for 3 years.
Simple Installation

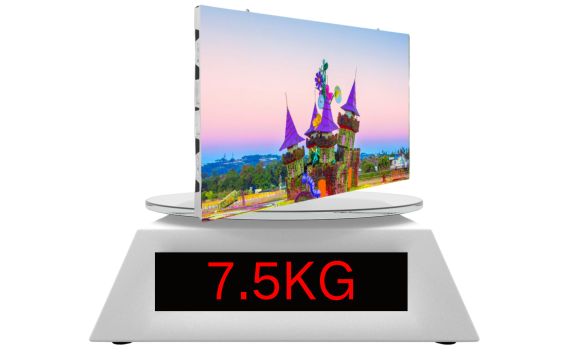

A single 640*480 cabinet weighs 7.5KG, and 1 square meter is only 22.5KG. A single person can easily install, save a lot of labor costs, safe, efficient and fast.

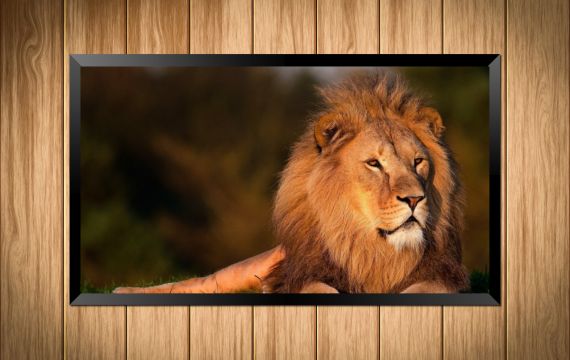

Support hoisting, wall hanging, embedded, vertical installation and other any kind of installation, the cabinet has up and down, left and right lock, can quickly seamless splicing, cable and signal network cable in the internal line, simple appearance, strong stability.
Application scenarios And Specifications

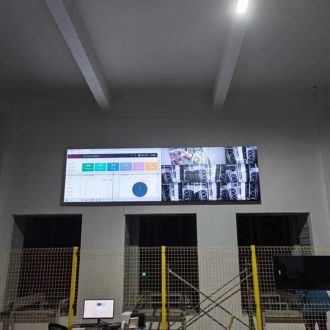

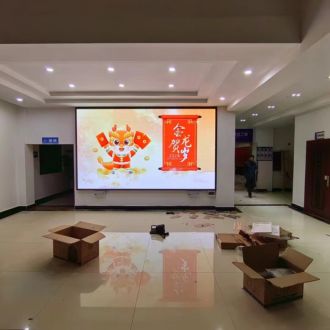

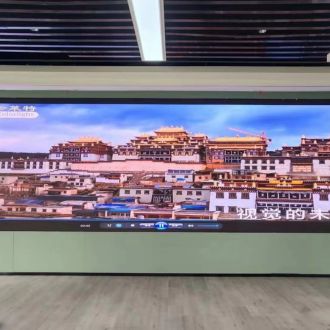

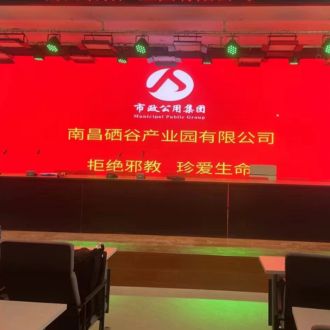

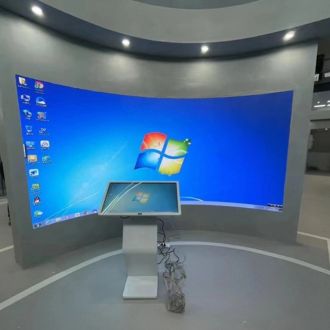

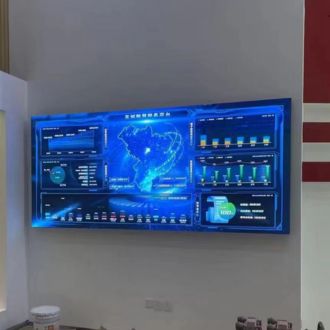

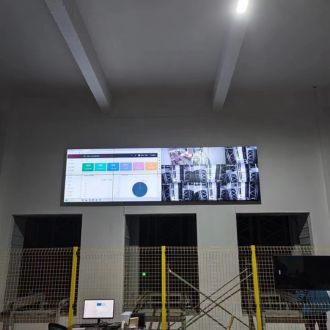

- Application Scenarios
- Parameter Specification
| Pixel pitch(MM) | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |
| Lamp size | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| GOB | Choosable | ||||
| Pixel density(dot/㎡) | 640000dot/㎡ | 422500dot/㎡ | 288906dot/㎡ | 250000dot/㎡ | 160000dot/㎡ |
| Module size(mm) | 320mm*160mm | ||||
| Module resolution | 160*180dot | 120*135dot | 96*108dot | 80*90dot | 60*68dot |
| Cabinet size(mm) | 640mm*480mm | ||||
| Cabinet resolution | 512*384pixel | 416*312pixel | 344*258pixel | 320*240pixel | 256*192pixel |
| Cabinet weight | ≤7.5KG | ||||
| IP rating | IP30 | ||||
| service life | 50000h | ||||
| visual Angle | H:160° V:140° | ||||
| Max power | ≤600w/㎡ | ||||
| Ave power | ≤300w/㎡ | ||||
| Refresh frequency | ≥3840HZ | ||||
