Indoor Commercial Led Video Wall Panels Feature
Led Video Wall Panels Multiple Size Selection

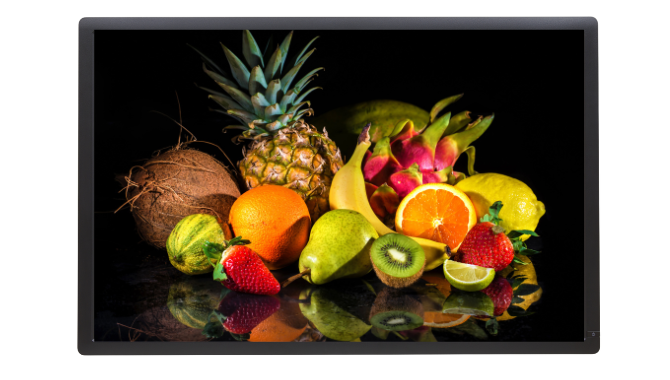

For the flexible requirements of commercial display, our led video wall has a variety of sizes to choose from, it can spline out any shape, it in addition to the high definition of the led display, high refresh rate, but also can fully attract passers-by to watch, bring more commercial value, enhance the brand image, increase exposure.
Any 90° splicing
The cabinet is made of die-casting aluminum, lighter and thinner, easy to achieve 90 ° rotation installation, support for lifting, solid mounting, greatly saving the installation time, and transportation costs.

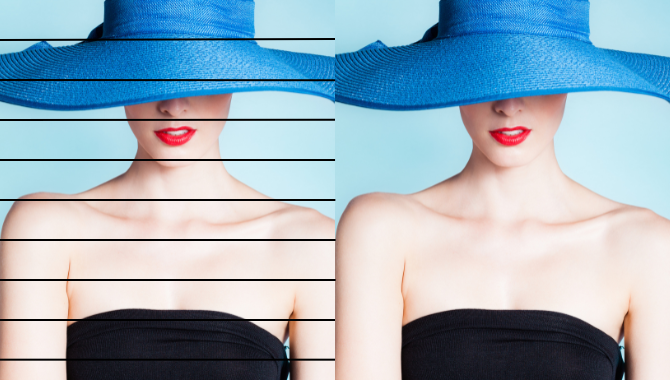

High refresh
Module adopts low-voltage 4.2V power supply, 16-channel PWM constant current IC, refresh rate ≥ 3840HZ, 16Bit, 16~32 scanning modes can be freely selected; with current gain, to achieve precise control of brightness, power saving and energy saving, strong anti-interference ability. Clear picture quality, support synchronous and asynchronous control system.
Full front and rear maintenance services
- Module with strong magnetic adsorption installation, HUB and power supply can be realized before maintenance, humanized design, no power line signal line, hard connection, safe and reliable. Fanless design, no noise, display more quiet.

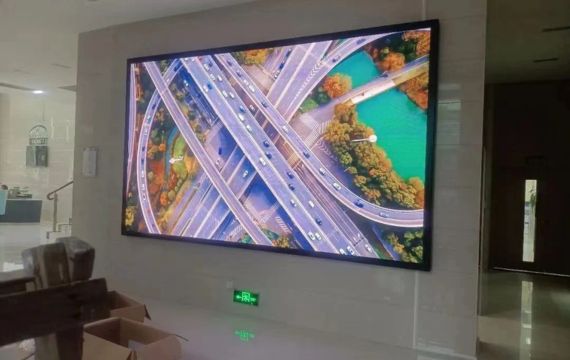

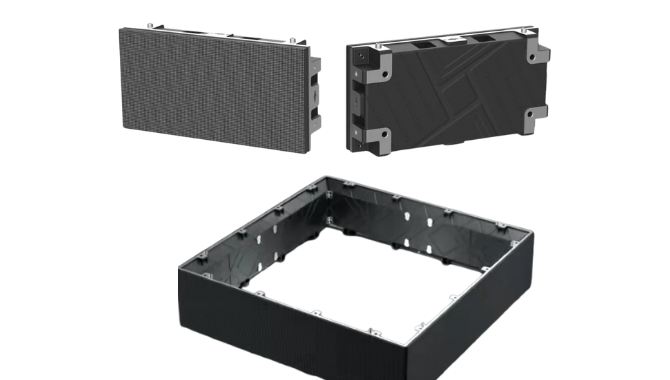

- Due to its ultra-thin and ultra-light box design, it can be used to support fixed installation, hanging, box do 45 ° oblique angle, support column screen splicing, it can save you a lot of human resources and structural costs. It is the first choice for the flat display panel with a hundred different shapes.
Unrivaled picture quality
Adopt golden ratio 16:9, realize point to point display, high refresh rate, high contrast ratio 7000:1, smooth picture quality, horizontal viewing angle 170°, no color difference, excellent consistency, it is the first choice for commercial display long strip advertisement display, door head led display.
Led Video Wall Seamless Stitching
- The cabinet is made of high-precision CNC die-casting aluminum processing, with very good flatness, installation error is less than 0.1mm, splicing without gaps, good consistency.
- The cabinet has up and down and left and right side locks, which can quickly ensure the flatness of the cabinet, easy to install.
- Cabinet internal alignment, neat, beautiful, wiring debugging are very convenient, strong stability.

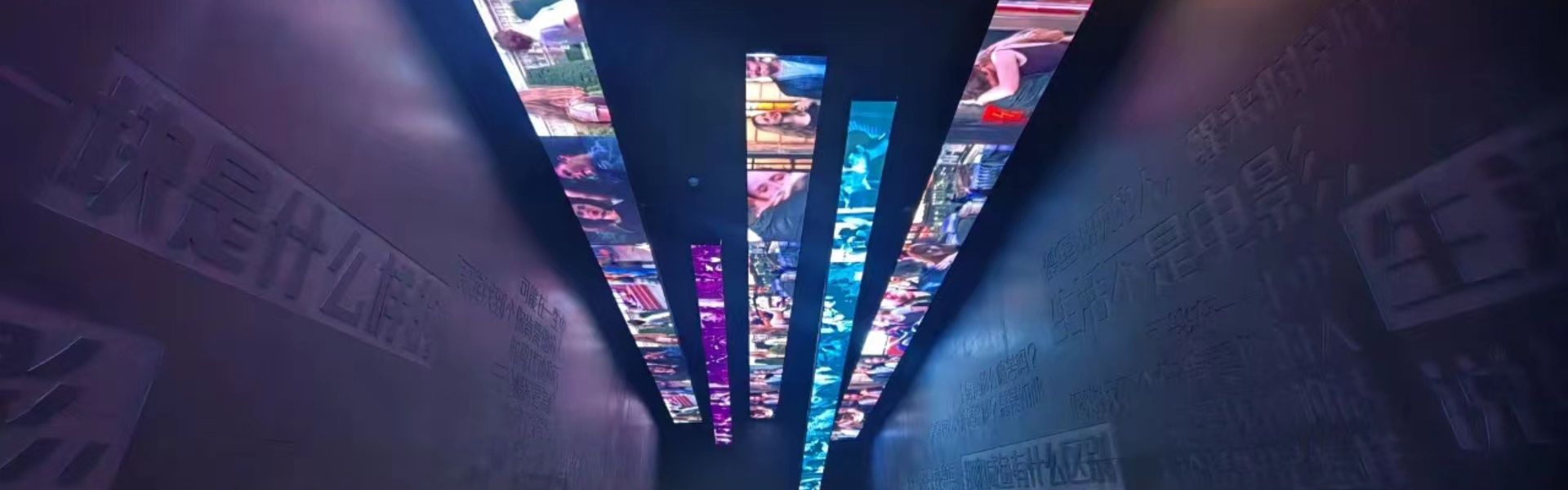

Multiple Applications

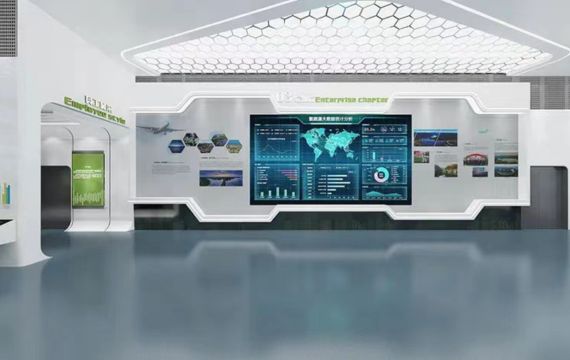

Flexible and simple cabinet structure, can adapt to any environment of the installation, can well present dynamic material as advertising, publicity use, widely used in:
- Supermarkets.
- Clubhouse.
- Bar halls.
- Subway stations.
- Airports.
- Door advertisement.
Minray led video wall panels can be easily combined with any shape of rectangular displays and offers a choice of multi-pitch sizes to meet the needs of high-definition displays, for example:
- Command Center
- Surveillance Center
- Dispatch Center
- Command city
- Brand publicity
- Live Sports
- Specification
| Pixel Pitch(MM) | 1.9mm | 2.6mm | 2.9mm | 3.9mm | 4.8mm |
| Module Size(mm) | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
| Module Resolution | 128*128dot | 96*96dot | 80*80dot | 64*64dot | 52*52dot |

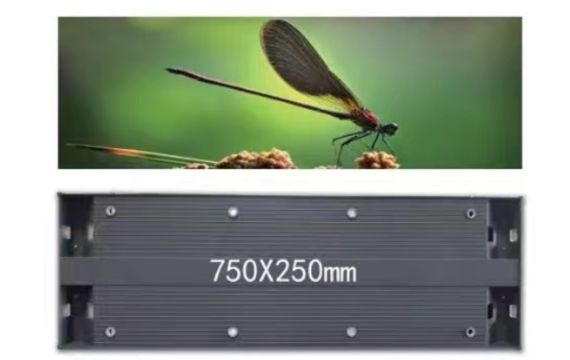

| Cabinet Size(mm) | 250*250mm
250*750mm 250*1000mm |
250*250mm
250*750mm 250*1000mm |
250*250mm
250*750mm 250*1000mm |
250*250mm
250*750mm 250*1000mm |
250*250mm
250*750mm 250*1000mm |
| Cabinet Weight | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg |
| IP Rating | IP20 | IP20 | IP20 | IP20 | IP20 |
| Brightness Intensity | ＞1500CD/㎡ | ＞1500CD/㎡ | ＞1500CD/㎡ | ＞1500CD/㎡ | ＞1500CD/㎡ |
| Maintenance | Front | Front | Front | Front | Front |
| Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh Frequency | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
