Outdoor Perimeter Led Display Dominance

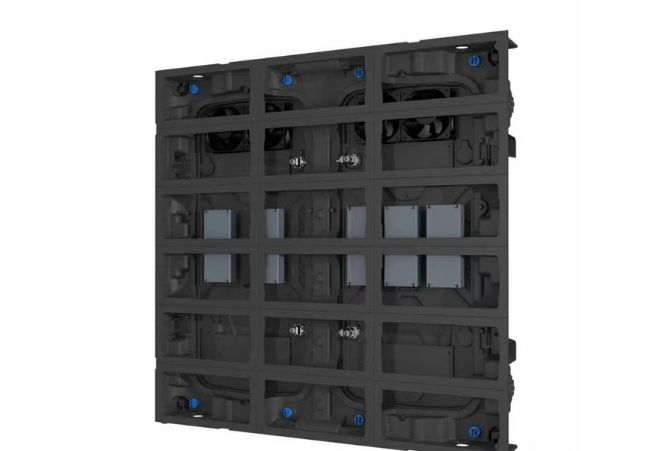

- High precision ultra-light ultra-thin cabinet.
- CNC classic industrial design.
- Easy and fast installation and maintenance.
- Varied shapes are rich and varied.
- Support right Angle/column/arc, etc.
Outdoor Perimeter Led Display Specificities
With the rapid change of outdoor advertising media, we are not limited to the outdoor billboard fixed background board, or rolling billboard, but the pursuit of more flexible, more convenient operation and play a new type of display, and our outdoor led display can fully meet all the requirements of outdoor advertising:
- The outdoor screen is fully waterproof.
- Play any edit.
- Break into commercials anytime.
- Live broadcast of dynamic news or events.
- Stable quality, cost-effective.
- Easy maintenance, quick replacement and disassembly.
- The picture quality is clear and consistent.
Outdoor Perimeter Led Display Series

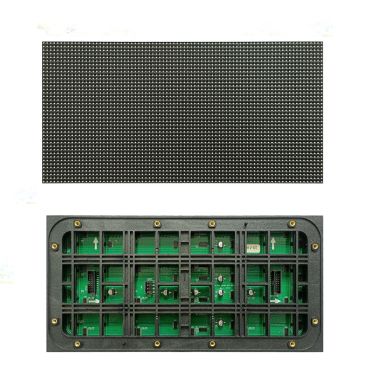

High resolution: 80*40, for close viewing, outdoor high-definition display, is the most ideal display for advertising, video, text and other programs, wide application scenarios, airports, high-speed rail stations, subway stations, door billboards
Usually used in the viewing distance of about 10 meters, high standard led front waterproof level IP65, the back of the box IP65, high brightness, high refresh, high gray level, good consistency

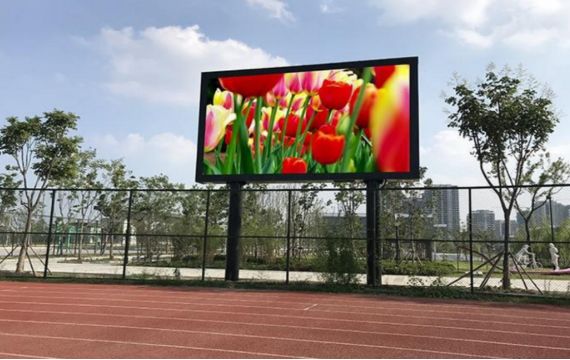

Applied to outdoor advertising large screen, usually installed on buildings, long viewing distance, clear picture quality, cost-effective, is an ideal alternative to traditional billboards.
Outdoor Multi-Purpose Led Display
Minray outdoor perimeter led display can be compatible with many occasions, rental lifting, outdoor solid installation, football field fence screen, stadium screen, etc., are applicable, simple internal structure, using soft connection, through the power line, wiring, to achieve the internal connection of the box, the box through a stable navigation connection, stable, efficient.
Standard Outdoor Advertising Screen

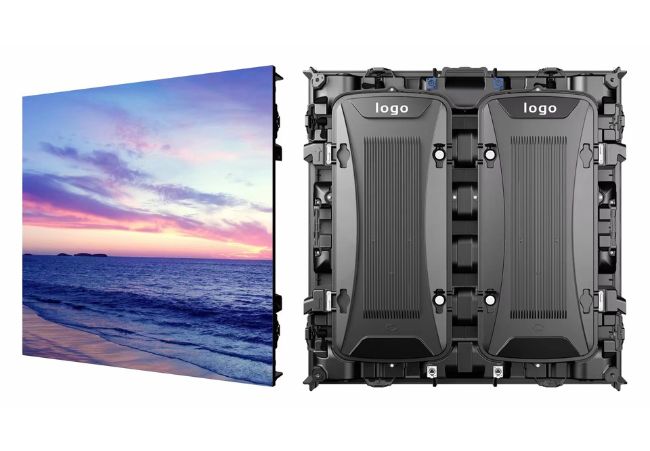

The use of all aluminum alloy cabinet material, a variety of sizes to provide options, arbitrary splicing, fully meet the structural size requirements of led large screen, but also reduce the cost of steel structure, general compatibility, easy wiring, fast installation, is the only choice for outdoor advertising screen.
Super Waterproof Outdoor Led Display
Our outdoor perimeter led display can be very stable application in any harsh conditions, in addition to a stable waterproof module, there are structural drainage design, can work normally under the condition of high temperature 60°, low temperature -50°, the internal heat is discharged through the aluminum box, intelligent power supply, at any time to monitor the large screen, start the automatic operation of the cooling fan, Automatic brightness adjustment.
Led video banners
Minray Led video banners in addition to providing simple and practical superb cost-effective, it can also change the application scenarios of many other functions.
Can be used for general outdoor advertising screen fixed installation.

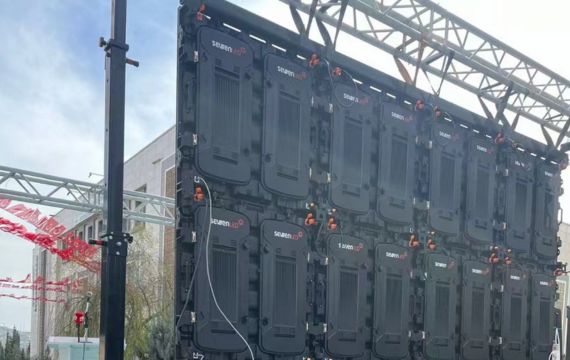

Add hanging beam, navigation plug, quick lock, change outdoor mobile rental led display screen.

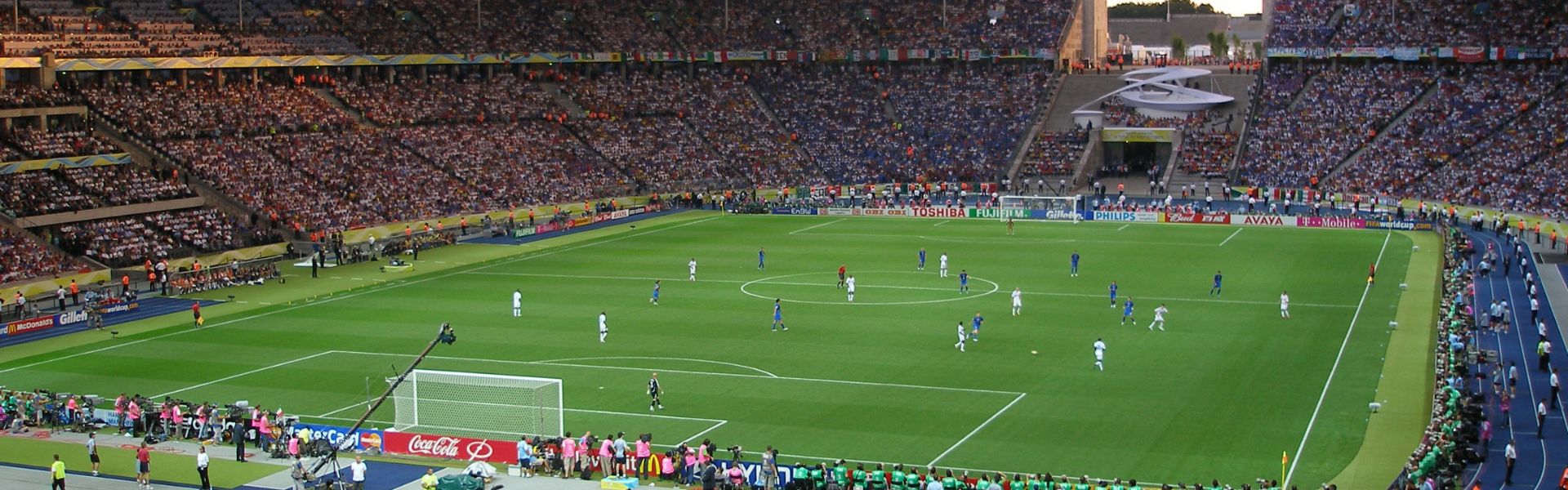

Replace silicone mask, top cover with impact cotton, add bracket on the back of the box, change into soccer led display.
Truly realize one screen multi-purpose, improve the utilization rate of led display, and bring you rich income.
Clear Outdoor Advertising Led Display
Minray outdoor perimeter led display uses outdoor high standard SMD waterproof led lamp beads, high brightness, large chip, brightness above 5500CD/㎡, high refresh 3840HZ, gray level 16bit, a variety of high-quality led to choose from, OSRAM, Nichiya, Cree, nationstar, for your large screen to provide any customized needs.
Consult our team of experts!
A Variety Of Installation Methods
Each cabinet is equipped with a unique lock, and the position of each cabinet can be accurately splicing from the left and right, up and down. The shape tolerance is plus or minus 0.1MM, and the flatness tolerance is <0.5MM. Integrated forming without deformation, small error, fast installation, seamless splicing, no crease picture.
Outdoor Advertising Led Display Applications
Ultra-light and ultra-thin cabinet, high-precision aluminum cabinet frame, seamless Mosaic image and video display;
Provide you with the ideal visual experience from any Angle.
The picture quality provides a new sensory experience for the audience.
Used in outdoor curtain wall, building construction, outdoor square, scenic spot publicity, schools and so on.

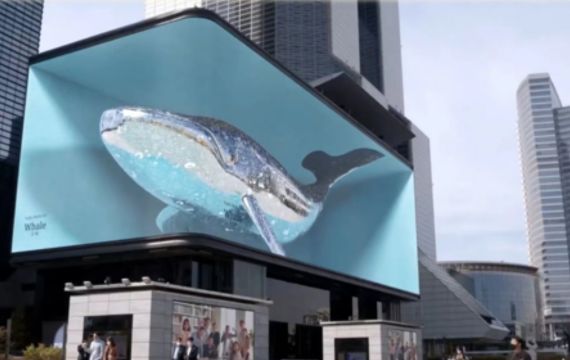

Using curved box design, seamless splicing, no shadow, combined with 3D material play, is a current market is very popular to attract traffic led large screen, can bring rich advertising revenue, landmark design, passers-by stay to watch, let people have a photographic memory.
Application scenarios And Specifications
- Application Scenarios
- Specification Parameter

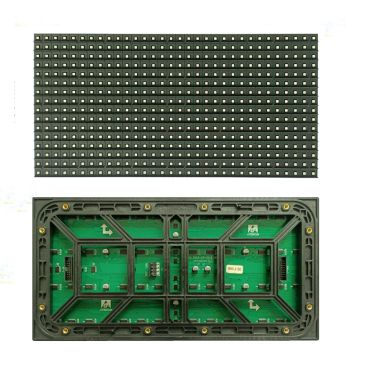

| Pixel pitch(MM) | 4mm | 6.67mm | 8mm | 10mm |
| Lamp size | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Pixel density(dot/㎡) | 62500dot/㎡ | 22477dot/㎡ | 15625dot/㎡ | 10000dot/㎡ |

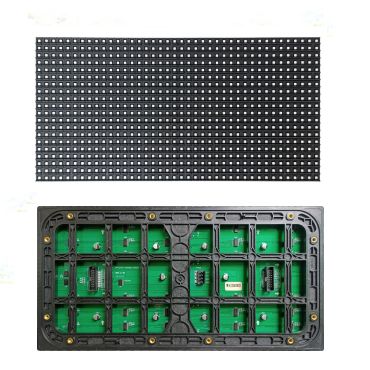

| Module size(mm) | 320*160 | 320*160 | 320*160 | 320*160 |
| Module resolution | 80*40dot | 48*24dot | 40*20dot | 32*16dot |
| Cabinet size(mm) | 960*960*90 | 960*960*90 | 960*960*90 | 960*960*90 |
| Cabinet resolution | 240*240dot | 144*144dot | 160*160dot | 96*96dot |
| Cabinet weight | 15.8kg | 16kg | 18kg | 18kg |
| IP rating | IP65 | IP65 | IP65 | IP65 |
| Brightness intensity | ＞4500CD/㎡ | ＞450CD/㎡ | ＞4500CD/㎡ | ＞4500CD/㎡ |
| View distance | ＞5m | ＞5m | ＞10m | ＞15m |
| Gray scale | 16bit | 16bit | 16bit | 16bit |
| Display scale | 16.7m | 16.7m | 16.7m | 16.7m |
| Max power | 650W/㎡ | 680W/㎡ | 620W/㎡ | 600W/㎡ |
| Ave power | 260W/㎡ | 280W/㎡ | 350W/㎡ | 300W/㎡ |
| Drive mode | 1/16S | 1/28S | 1/16S | 1/16S |
| Refresh frequency | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
