Minray WT 500*1000mm outdoor transparent led display
- Thin and light: weight only 7.5kg/㎡, easy to install and maintain, no need to support structural reinforcement, save the cost of steel structure.
- High transparency: 60% transparency, no field of vision blocking.
- Support arc: can be spelled arc ± 15 °; support 90 ° splicing Low power
- consumption: the use of positive light-emitting high-brightness LED lights, high conversion efficiency PFC function power supply, large screen energy saving of more than 50%;
- Before and after maintenance: can be installed from the front / after the installation, maintenance, and greatly improve the adaptability of the product to the site installation conditions;
- Installation: support for outdoor rental, fixed installation, hanging. Use of the scene: stage activities, exhibitions, exhibitions, shopping malls, waiting \ car building, showroom, office building glass curtain wall, etc.

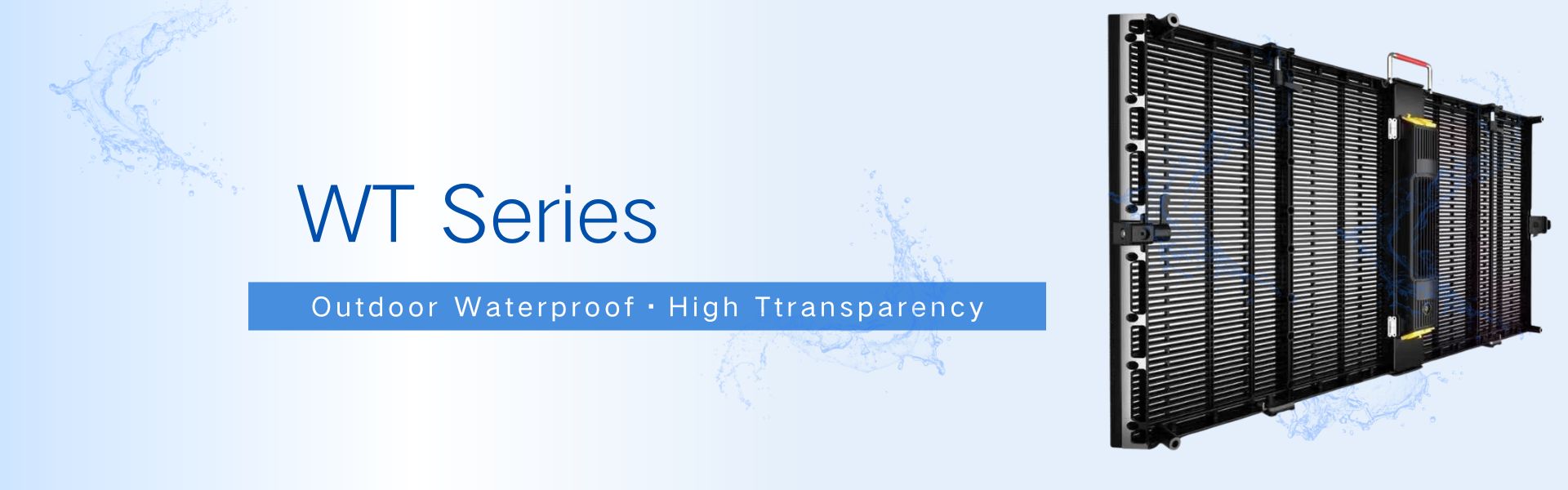

Minray WT High-end series of outdoor transparent led display
LED grille transparent display is a new type of advertising media screen, with ultra-light, high brightness, high translucency product features, while in the form of performance with ultra-energy efficient, simple and fast installation, easy to maintain, fast heat dissipation, without the need to install air conditioning and other broader commercial value, in the pursuit of lightweight, high level of stage interpretation, has a unique advantage, can add more display effect for the event, in the side screen of the Display effect, more able to show a full range of viewing perspectives, in the stage interpretation, concerts, the application of glass curtain wall is becoming more and more widespread.
transparency led display WT Series Features
Outdoor transparent screen using the grille hollow design, the overall weight compared to the traditional led screen reduced by 50%, with low wind resistance, high transmittance advantages.
The light bar adopts segmented design, which can realize front and rear maintenance, and the integrated design of control box, the waterproof grade reaches IP65, which is convenient for maintenance and replacement.
Adopt outdoor high brightness led, high brightness, good ink consistency, anti-UV, UV, brightness can reach 5000CD/㎡.
Left and right to reach 120 ° viewing angle, allowing the audience to watch any angle to the led transparent screen video playback, is used in the outdoor large screen, stage rental screen of choice for the product.
Innovative outdoor transparent rental led display
WT series brings the technological innovation of transparent led display, high contrast ratio up to 6000:1; transparency rate of more than 70%, integrated CNC aluminum cabinet, every detail of the display, represents our adherence to the “scientific and technological innovation, quality drive the future,” the business philosophy, for the stage design to create a greater interpretation! Value of the stage design.

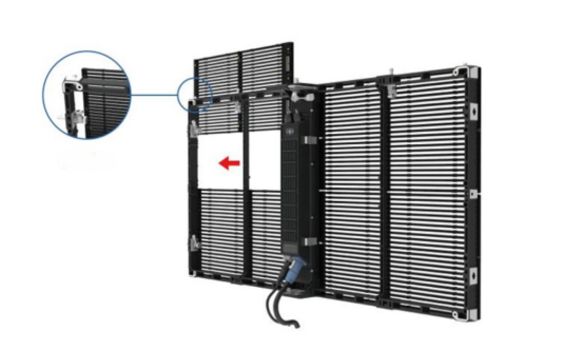

Quick Maintenance Service

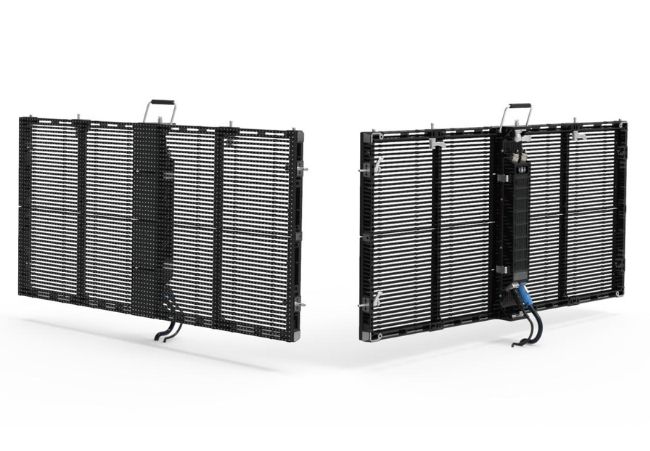

Adopt led light board module, cabinet, control box separated structure, each independent individual, can be maintained separately, single block disassembly, without the need to replace the entire box operation, save time and effort.
Full range of waterproof design

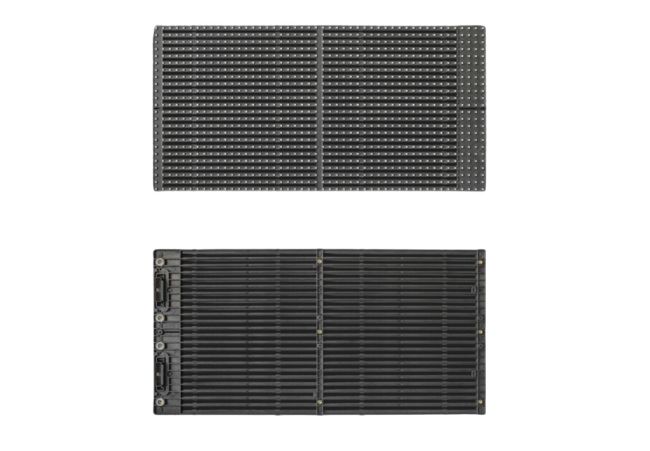

Led lamp beads are designed with outdoor IP65 waterproof grade, fully sealed and potted, and can effectively prevent ultraviolet rays, anti-UV, non-reflective, long-term use of non-color change, good consistency and high stability.

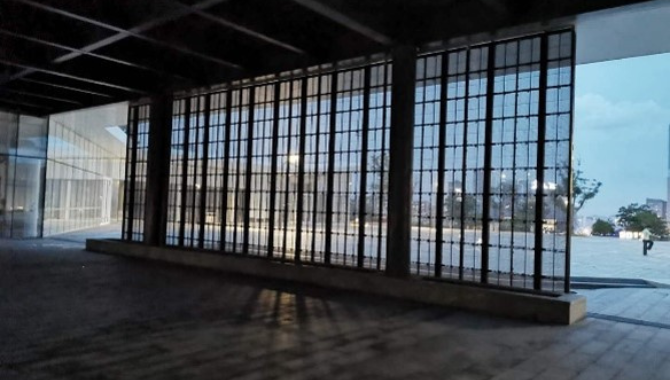

Transparent view easy to install
With >60% high transmittance, no impact on lighting, shading of buildings, and efficient heat dissipation, the WT series redefines the flexibility of LED displays through its precision-engineered angle adjustment system, offering a range from -10°convex to +15°concave, which gives designers the flexibility to produce complex and captivating curved visual effects that maximize creative freedom.
Super stunning display
Why does the WT series led transparent screen stand out in the display effect? It relies on its outstanding display effect, with 5000nit brightness, 16-bit grayscale, 3840Hz refresh rate, and extraordinary transparency to stand out, very suitable for fixed installation of large screens and large outdoor stage interpretation activities, it will enhance the visual effect to a new height.
It can be perfectly adapted with the rental products MR series, MS series, MZ series, WR series, WZ series, so that the stage shows 3D/4D fantastic effect, so that the audience experience immersive visual effects to be, for your activities to bring a broader market, and considerable income.
Easy-to-operate structure
The WT Series sets a new standard in the industry with its cutting-edge display technology and stable product performance, ensuring unparalleled stability and a perfectly uniform display surface for large LED display installations. As the ultimate traveling stage display, the WT Series pursues the ultimate lightweight design while maintaining a high level of transparency, resulting in a clear display that provides users with even more amazing visual effects. .
A transparent grille screen suitable for large screens
WT series led transparent screen is a very suitable product for big screen, it has ultra-light and ultra-thin characteristics, suitable for high altitude installation, no air-conditioning heat dissipation, suitable for long-distance viewing, support for hanging, wall mounting, stacking.

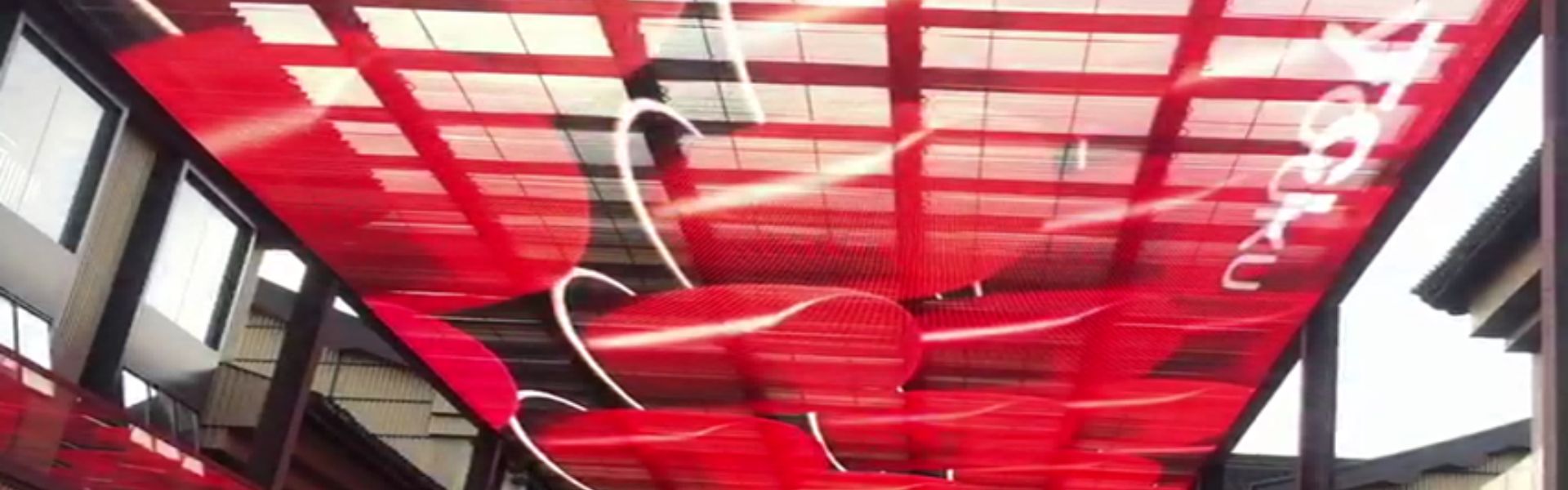

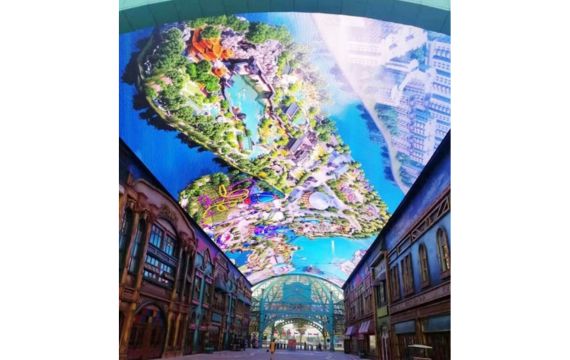

As the canopy screen is also a major feature of the product, can give visitors an immersive experience, these animation materials can be like the white clouds floating up in the air, the real underwater world, the endless grassland and other scenes, to bring an immersive feeling, so that the whole environment is full of modernity and science and technology, to give you a high level of visual experience, enhance the image.
- Specification Parameter
| Pixel pitch(MM) | ML3-7mm | ML5-10mm | ML10mm | ML15mm |
| Lamp size | SMD1915 | SMD2020 | SMD2020 | SMD2020 |
| Pixel density(dot/㎡) | 32768dot/㎡ | 18432dot/㎡ | 9216dot/㎡ | 4096dot/㎡ |
| transparency | 53% | 58% | 58% | 71% |
| Cabinet resolution | 256*128dot | 192*96dot | 96*96dot | 64*64dot |
| Cabinet size(mm) | 1000*500 | 1000*500 | 1000*500 | 1000*500 |
| Cabinet weight | 7.5kg | 8kg | 7kg | 7kg |
| IP rating | IP65 | IP65 | IP65 | IP65 |
| Brightness intensity | ＞4000CD/㎡ | ＞4000CD/㎡ | ＞5000CD/㎡ | ＞5500CD/㎡ |
| View distance | ＞5m | ＞10m | ＞15m | ＞25m |
| Gray scale | 16bit | 16bit | 16bit | 16bit |
| Display scale | 16.7m | 16.7m | 16.7m | 16.7m |
| Max power | 504W/㎡ | 576W/㎡ | 320W/㎡ | 500W/㎡ |
| Ave power | 151W/㎡ | 172W/㎡ | 120W/㎡ | 210W/㎡ |
| Drive mode | 1/8S | 1/4S | 1/2S | 1/1S |
| Refresh frequency | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
