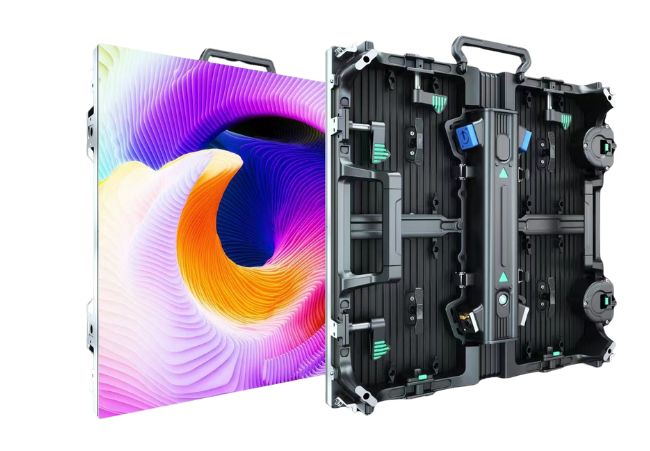

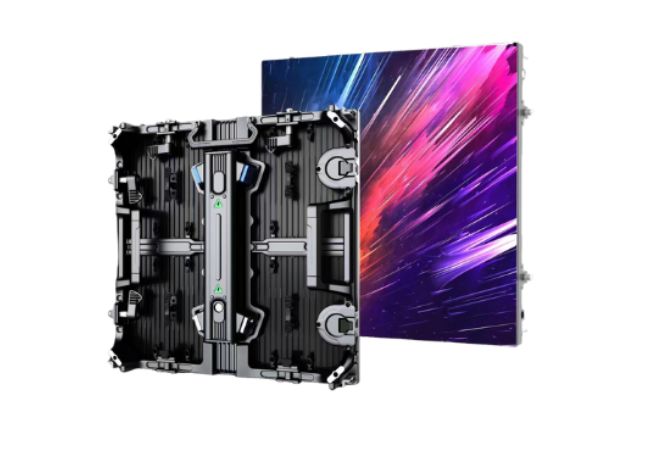

Stage rental led display MR Series
If you need a stable, Convenient and Safe rental display, then MR Series will bring you a perfect visual experience.
- 500*500mm/1000mm,Ultra-light, Ultra-thin cabinet.
- Designed according to human simulation mechanics.
- Easy personal fast installation.
- Splicing diversity, right Angle, curved, cube, etc.
- Easy maintenance.
- Indoor/ outdoor p1.95 p2.6 p2.976 p3.91 p4.81.
We Are Your First Choice
If you are choosing a rental led display, So please minray will become your first choice supplier, We provide different types of rental led display, Covering the points spacing is 1.95 mm, 2.6 mm, 2.976 mm, 3.91 mm, 4.81 mm, Can through the viewing distance you need to choose, If our products can not meet your needs, We can also provide customized services, You just need to tell us you want the appearance, size, Then we will do our best to meet you.
Stage Rental Led Display MR Series Feature
Ability to fast and easily install, Right-Angles display, Curved display, Cubes display, Cylinder display.
Modular design, Can easily and quickly disassemble modules, Control boxes, More convenient maintenance.
Die-cast aluminum boxes are made of CNC machining, ±0.1mm, So that the rantal display in the splicing gap is smaller, better consistency
The module can be maintained front and rear, and 8pcs strong magnets are installed at the back of the module to ensure a flatness of less than 0.1mm

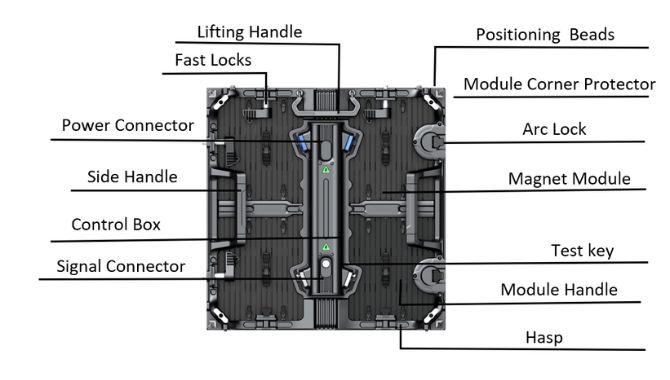

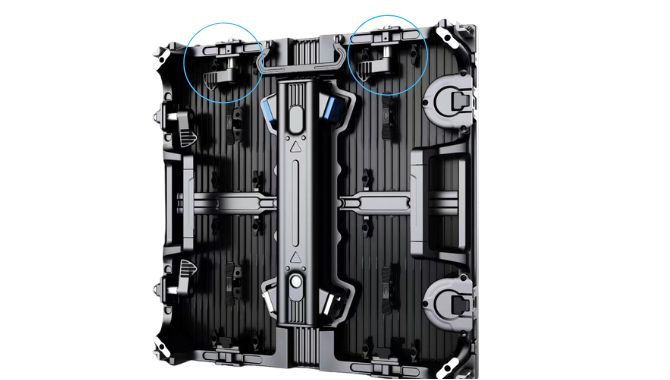

Ultra-stable structure design
In order to solve the problem that the module was knocked installation, We installed 4pcs anticollisions devices on the box as standard, And also anticollision led pads on the PCB board, Which can anticollision to the led line in the case of bumping Effectively protect screen from corner bump.

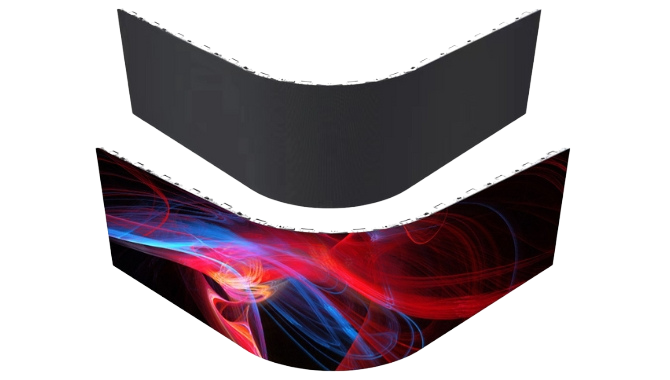

Rotatable Arc Locks Design
The innovative rotatable curve lock contributes to higher precision curve installation than traditional arc locks. From 0° to ±7.5° allowing for more flexibility in building curved screens

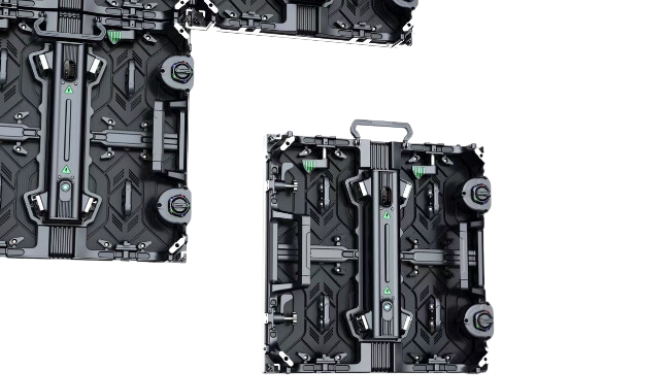

A True One-Step Fast and Easy Set-Up
The smart lock ensures the efficient installation of a person, Only need to screw the lock, The side lock can be locked, The box will automatically tighten, So as to achieve the flatness is very good, Can not see any gap.
Superb Visual
In order to make the picture quality even better, We create excellent visual effects through high refresh rate, Excellent color processing and high contrast, And in the horizontal 170° Angle of view, No shadows, No reflections, So that the audience can enjoy a beautiful 360° visual feast.

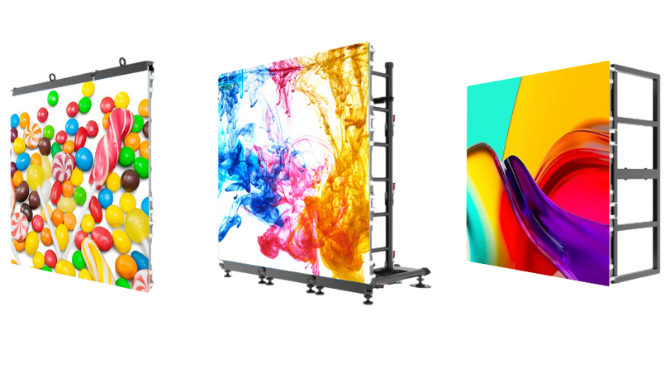

A Variety Of Arbitrary Installation Methods
MR Series is suitable for hanging, Stacking, Ceiling and other installation methods, We can provide any related accessories for your led display installation service.

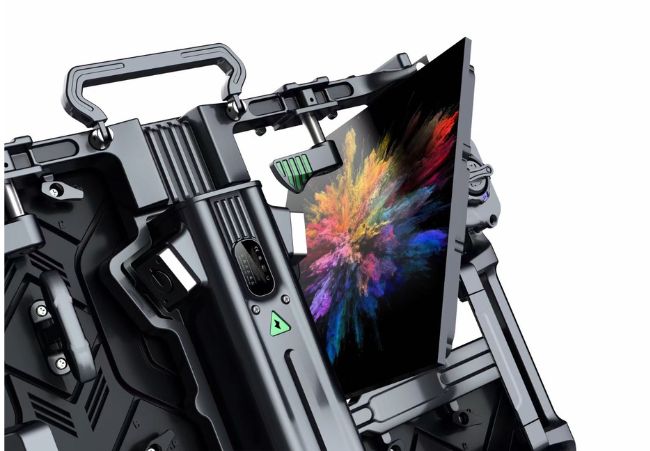

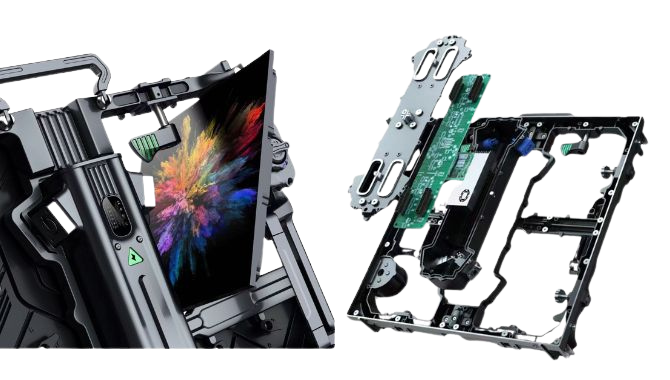

Modular Design for Front Service&Rear Service
The classic modular design of the MR Series allows for front and rear maintenance of modules and power boxes. When maintaining the module, You only need to turn the 4 knobs 90° to remove the module, And when maintaining the power box, You only need to unlock the 4 buttons, Which will be removed, making the maintenance very user-friendly.
Light Weight Panel
The weight is only (6.6kg/pcs), Which is convenient for one person to lift with one hand, Fast installation, Increase installation efficiency and reduce labor costs.
We will ensure your products from the following levels
·High performance: Our products have been carefully designed and tested, with excellent performance, can meet the various needs of customers.
·Reliable quality: We strictly control the production process to ensure stable and reliable product quality, so that customers can use with confidence.
·Innovative technology: We constantly introduce the latest technologies and processes to keep our products competitive in the market.
Professional service team
We provide a full range of customer service support, in the pre-sale, sale and after-sales can give timely help。

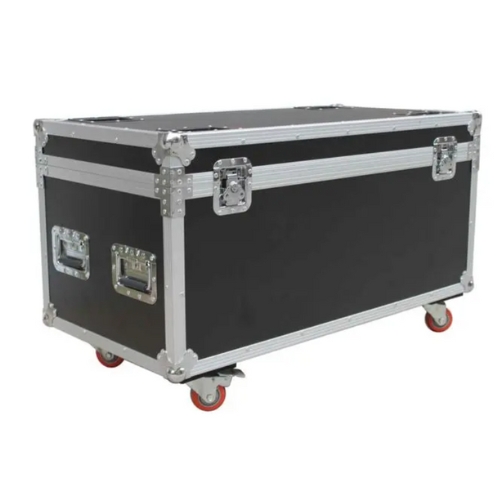

LED display screen often face construction, transportation and other problems, in order to better protect the LED screen, we are equipped with an air box to transport you, safe, efficient, reduce labor costs.
Accessories For Your Peace Of Mind

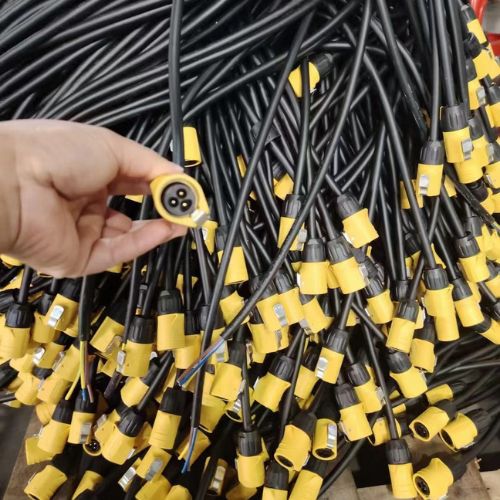

We have chosen the national standard pure copper wire, which effectively avoids the use of over-electric heat, flame retardant, ignition, easy attenuation and so on

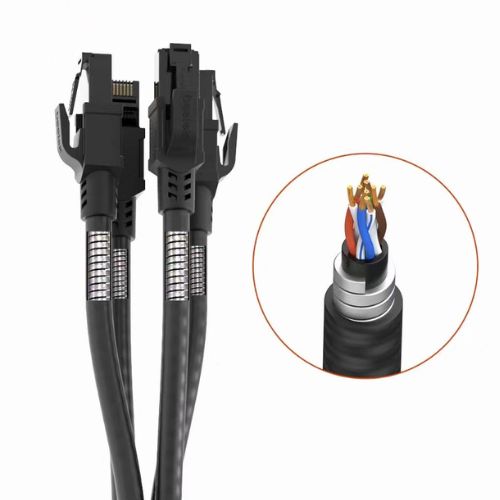

Using super class6 pure copper network cable, transmission distance ≤200m, guarantee the signal uninterrupted, no flash screen, stable
Large capacity: Can hold MR 8PCS, MR plus 6PCS.
protection material:Wood environmental protection grade E1.
Safe and reliable: The outer edge is covered by metal ball and anti-collision cotton strip.
Prevent static electricity: Professional anti-static cloth is installed inside.
Super load-bearing: can withstand up to 400KG.
Application scenarios And Specifications

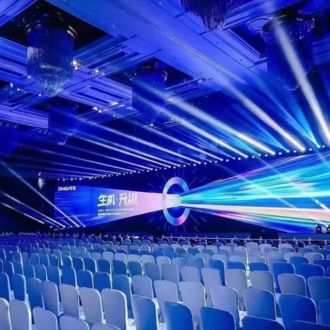

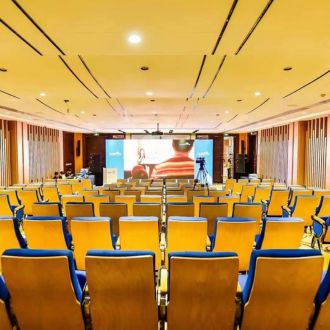

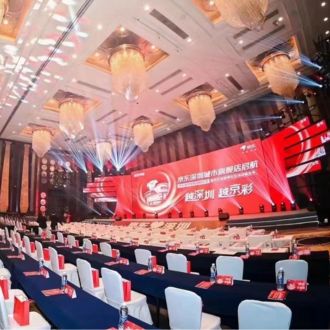

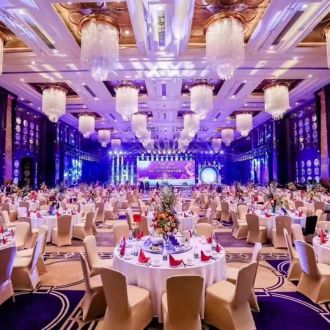

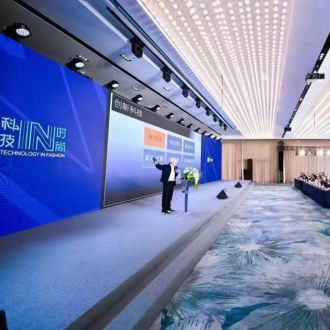

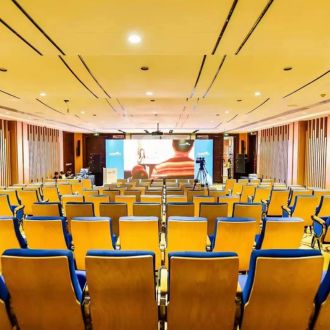

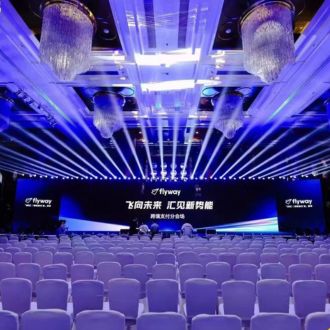

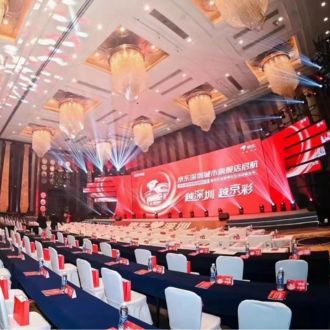

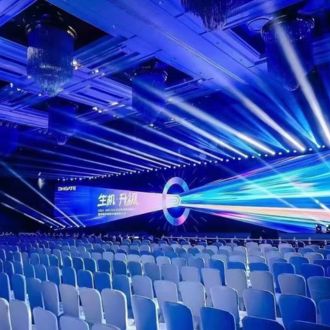

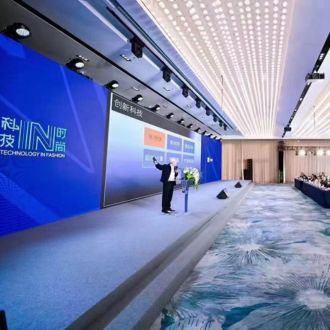

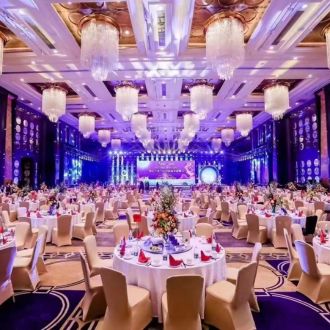

- Application Scenarios
- Specification
| Pixel pitch(MM) | 1.95mm | 2.976mm | 3.91mm | 4.81mm |
| Lamp size | SMD1010 | SMD1515 | SMD2020 | SMD2020 |
| Pixel density(dot/㎡) | 262144dot/㎡ | 112896dot/㎡ | 65536dot/㎡ | 43222dot/㎡ |
| Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Module resolution | 128*128dot | 84*84dot | 64*64dot | 52*52dot |
| Cabinet size(mm) | 500*500 | 500*500 | 500*500 | 500*500 |
| Cabinet resolution | 256*256dot | 168*168dot | 128*128dot | 104*104dot |
| Cabinet weight | 8kg | 8kg | 6.6kg | 7kg |
| IP rating | IP40 | IP40 | IP40 | IP40 |
| Brightness intensity | ＞1500CD/㎡ | ＞1500CD/㎡ | ＞1500CD/㎡ | ＞1500CD/㎡ |
| View distance | ＞3m | ＞3m | ＞5m | ＞5m |
| Gray scale | 16bit | 16bit | 16bit | 16bit |
| Display scale | 16.7m | 16.7m | 16.7m | 16.7m |
| Max power | 504W/㎡ | 576W/㎡ | 320W/㎡ | 500W/㎡ |
| Ave power | 151W/㎡ | 172W/㎡ | 120W/㎡ | 210W/㎡ |
| Drive mode | 1/32S | 1/21S | 1/32S | 1/26S |
| Refresh frequency | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
