Transparency Holographic LED Invisible Screen Features
Ultra-high transmittance not only reduces the weight of the screen, allowing for lighter installation
Adopting led integrated structure design, high refresh, high contrast, at present our mainstream point pitch P3.91mm, with ultra-clear display, can be your product display, image release, store promotions and other advertising and publicity, bring visual intuitive feeling.

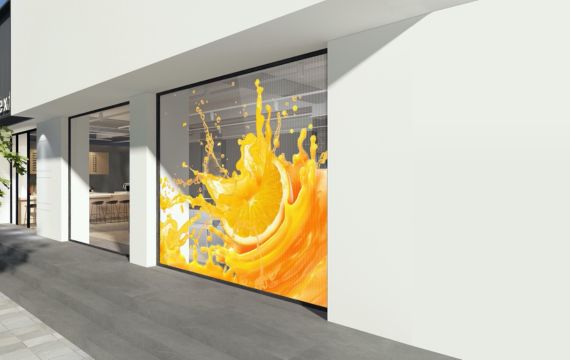

Inside a shopping center or super market, there is usually a strong spotlight shining through, while our holographic screen, with its ultra-high contrast ratio, is able to emit light and remain clear under strong light.
Adopting modular unitized design, the power control box is concentrated on the top of the installation, which is very convenient for maintenance and installation.
New generation led holographic transparent screen
Led holographic transparent screen has a very flexible structure design, can be arbitrarily cut out any size required, led chip and driver IC two-in-one, small size, increased transparency, the better the effect performance.main application areas:
Commercial complex
- Glass curtain wall, atrium, glass parapet, glass window, sightseeing elevator, curtain wall, etc.,.
Brand Chain - Tea catering, baking, shoes and jewelry stores, 4S experience stores, bank business halls.
- Advertising Media Airport, high-speed rail, subway, bus and other transportation hubs.
- Performing Arts
Bars and nightclubs, stage design, variety shows, cultural and tourism landscapes.
Arbitrary cutting
The driver IC is driven by independent partition, which do not interfere with each other, and can be cut arbitrarily without affecting the transmission, and any shape can be realized.

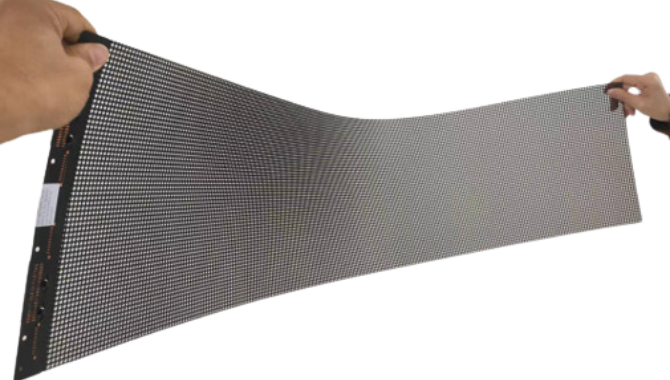

Ultra-thin, ultra-light and large bending angle
Led holographic transparent screen adopts advanced flexible PCB design, has a very good bending angle, splicing structure without gaps, the front and back of the glass curtain wall can be installed, the control box is mounted on the base, led holographic transparent screen with no connecting wires between them, simple and beautiful.
Naked eye 3D display effect
Led holographic transparent screen can be built in any location, does not block the light and line of sight, light transmission, to create an immersive visual experience, does not block the atrium lighting and line of sight, does not change the design of the commercial space, the atrium space, guardrail, sightseeing ladder glass curtain wall, etc. into a transparent display, to create a unique commercial atrium 3D visual effects landscape
- Specification Parameter
| Model | M3 | M6 |
| Pitch (mm) | P3.91 | P6.25 |
| Transparency | 90% | 95% |
| Pixel Density(dot/ m²) | 65536 | 25600 |
| Cabinet Size(mm) | 1000×250 \ 1200×250 | 1500×250 |
| Cabinet Resolution Ratio（dot） | 256×64 \ 300X64 | 240×40 |
| Weight (Kg/ ㎡) | 6 | 5 |
| Brightness (cd/ m²) | ≥ 5000 | ≥ 5000 |
| Packaging | led and driver IC integration | |
| Scanning Mode | Static single point control | |
| Lamp bead working life | ≥ 10H | |
| Gray Scale | 65536 | |
| Max Power(W/ m²) | 800 | |
| Average Power(W/ m²) | 200 | |
| LED control system | Synchronization/Asynchronization | |
| Input Voltage | AC100~240V 50/60 Hz | |
| Working Voltage | DC 4.2V ± 0.2V | |
